How to Configure Triple Monitors on Windows 11/10

Using a three-monitor setup in Windows 11 or 10 can dramatically improve productivity by giving you more screen real estate for multitasking. Whether you’re a professional, gamer, or content creator, having multiple monitors allows you to organize different applications, spreadsheets, or programs across several screens. In this guide, we’ll walk you through how to set up three monitors in Windows 11 or 10, ensuring your system is optimized for the best display experience.

1. Check System Requirements

Before setting up three monitors, it’s essential to ensure that your computer is capable of supporting multiple displays.

Things to Check:

• Graphics Card: Ensure your graphics card supports multiple monitors. Most modern GPUs support two to three displays, but it’s important to confirm with the manufacturer’s specifications.
• Available Ports: Verify that your PC has enough display output ports (e.g., HDMI, DisplayPort, DVI, or VGA). You can use adapters if necessary, but your computer must have at least three outputs for a triple-monitor setup.
• Cables: Make sure you have the correct cables (HDMI, DisplayPort, etc.) to connect all three monitors to your PC.

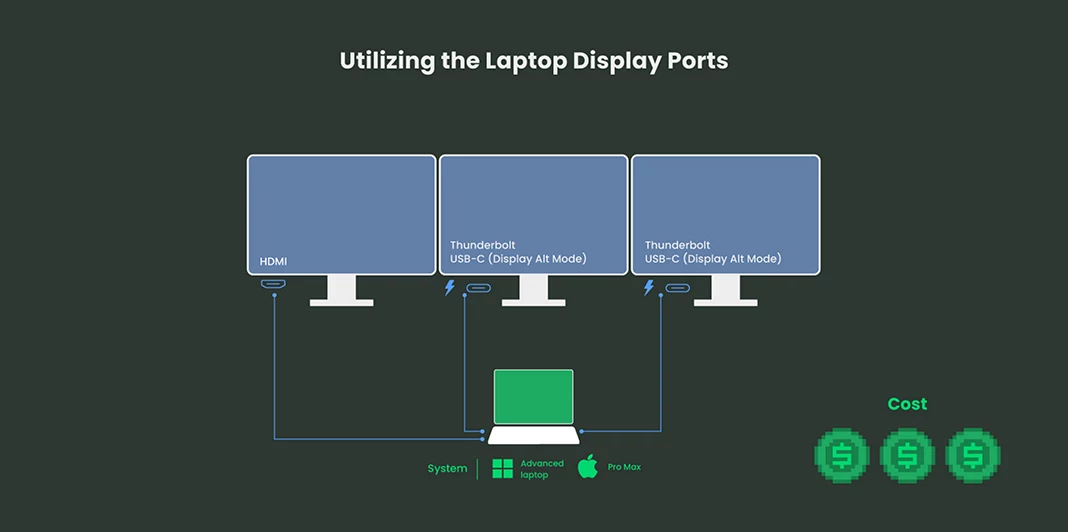

2. Connect Your Monitors

Once you’ve confirmed your system can support three monitors, it’s time to connect them to your computer.

Step-by-Step Guide to Connecting Monitors:

1. Turn Off Your Computer:
   • Power down your PC to safely connect the monitors.
2. Connect the First Monitor:
   • Plug the first monitor into the appropriate display port (HDMI, DisplayPort, VGA, or DVI).
3. Connect the Second Monitor:
   • Using another available display output on your graphics card, connect the second monitor.
4. Connect the Third Monitor:
   • Connect the third monitor using the final available port. If your PC doesn’t have three native display outputs, use an adapter such as a USB to HDMI or DisplayPort adapter.
5. Turn on Your Computer:
   • Power up your PC, and all three monitors should be detected automatically by Windows.

3. Configure Display Settings in Windows 11/10

After connecting your monitors, you’ll need to configure the display settings in Windows to arrange the monitors properly and adjust their behavior.

Step-by-Step Guide to Configure Display Settings:

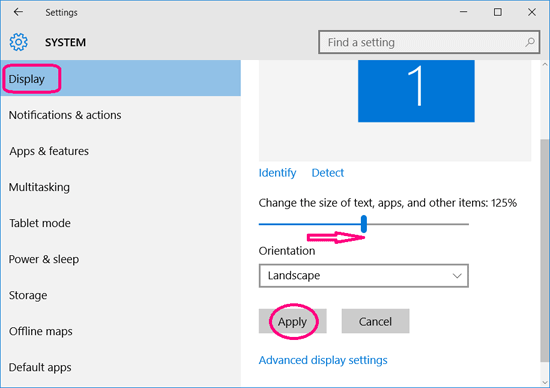

1. Open Display Settings:
   • Right-click anywhere on the desktop and select Display settings from the context menu.
2. Detect the Monitors:
   • In the Display Settings window, you should see all three monitors labeled as 1, 2, and 3. If not, click the Detect button to have Windows recognize the additional monitors.
3. Arrange the Monitors:
   • Drag the monitor icons to arrange them in the correct order according to your physical setup. This allows the mouse pointer to move between screens seamlessly.
4. Select Primary Display:
   • Click on the monitor you want to set as your primary display, and check the box next to Make this my main display. The primary monitor will show the taskbar and the Start menu.
5. Change Display Mode:
   • Scroll down to the Multiple displays section, where you can choose between different display modes:
     • Extend: This expands your desktop across all three monitors (ideal for multitasking).
     • Duplicate: This displays the same content on all monitors (not ideal for a 3-monitor setup).
     • Show only on [X]: Displays content only on one selected monitor.

   Choose Extend these displays to maximize your workspace.
6. Adjust Display Resolution and Scaling:
   • You can also adjust each monitor’s resolution and scaling under the Scale and layout section to ensure the best visual experience on each screen. It’s recommended to match the resolution of all monitors for consistency.

4. Optimize the Display for Productivity

Once you’ve configured the basic settings, there are a few additional tweaks to make the most out of your three-monitor setup.

Step-by-Step Guide to Optimize Your 3-Monitor Setup:

1. Taskbar Customization:
   • In Windows 10/11, you can customize the taskbar settings for multiple monitors. Right-click on the taskbar and select Taskbar settings. Scroll to the Multiple displays section, where you can enable or disable the taskbar on all monitors and customize how buttons appear on each monitor.
2. Snap Windows to Specific Monitors:
   • Use the Snap feature to quickly move applications between monitors. Simply drag a window to the edge of the screen, and Windows will automatically snap it to fit half of the monitor. This feature works across all three displays.
3. Keyboard Shortcuts for Multi-Monitor Navigation:
   • Use the following keyboard shortcuts to manage your windows efficiently:
     • Windows + Shift + Left Arrow / Right Arrow: Move the active window to the previous or next monitor.
     • Windows + P: Quickly toggle between display modes (Extend, Duplicate, etc.).
4. Third-Party Tools for Advanced Multitasking:
   • Consider using third-party tools like DisplayFusion or UltraMon for advanced multi-monitor management. These tools offer additional features like customizable taskbars, window snapping, and enhanced keyboard shortcuts for multiple monitors.

5. Troubleshooting Common Issues with Multiple Monitors

If you experience any problems during the setup process, here are a few troubleshooting tips to resolve common multi-monitor issues:

• Monitor Not Detected: If one of the monitors isn’t showing up in Display Settings, check the cable connections and ensure your graphics card drivers are up to date.
• Resolution Issues: If the resolution looks off on one of your monitors, manually adjust it in Display Settings under the Scale and layout section.
• Incorrect Arrangement: If moving the mouse between monitors feels incorrect, go back to the Display settings and rearrange the monitors in the correct physical order.

Conclusion

Setting up a three-monitor system in Windows 11/10 is a powerful way to enhance productivity and streamline workflows. By following this step-by-step guide, you can easily connect and configure three monitors, adjust display settings, and optimize your workspace for maximum efficiency.

Whether you’re a professional working across multiple applications or a gamer looking for an immersive experience, a well-configured multi-monitor setup will take your Windows experience to the next level.
