How to Extract Substrings in Excel: A Regex Guide for Effective Data Analysis
When working with large datasets in Excel, you may often need to extract specific information from text strings. Regex (Regular Expressions) is a powerful tool for extracting substrings based on patterns. Though Excel doesn’t natively support Regex, there are several ways to use it for advanced data analysis tasks, including workarounds like VBA scripting, Power Query, and even third-party add-ins.
In this guide, we’ll explore how to use Regex in Excel to extract substrings, along with step-by-step examples and solutions for data analysis.
What is Regex and Why Use It?
Regex, or Regular Expressions, is a sequence of characters that forms a search pattern. It’s incredibly versatile, allowing you to match complex patterns in text, making it perfect for tasks such as:
- Extracting phone numbers
- Parsing email addresses
- Isolating specific words or phrases
- Working with structured text data like addresses
While Excel’s native functions like LEFT(), RIGHT(), MID(), and FIND() allow some basic string manipulation, Regex gives you much more control when working with complex patterns.
Method 1: Using VBA for Regex in Excel
To use Regex within Excel, you need to enable VBA (Visual Basic for Applications), which allows custom scripting in Excel. Here’s how to use VBA to apply Regex for extracting substrings:
Step 1: Enable Developer Mode
- Open Excel and click on File > Options.
- Go to the Customize Ribbon tab and check the box next to Developer.
Step 2: Insert VBA Code
- Press Alt + F11 to open the VBA editor.
- Click Insert > Module to create a new module.

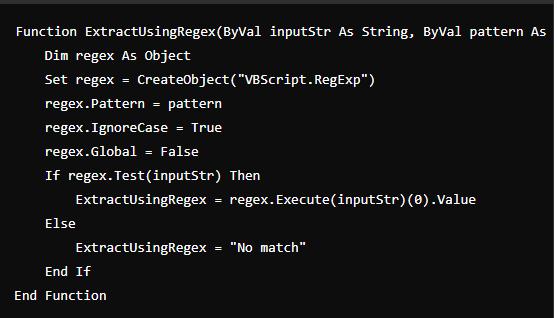

- Copy and paste the following code into the module window:
Function ExtractUsingRegex(ByVal inputStr As String, ByVal pattern As String) As String
Dim regex As Object
Set regex = CreateObject("VBScript.RegExp")
regex.Pattern = pattern
regex.IgnoreCase = True
regex.Global = False
If regex.Test(inputStr) Then
ExtractUsingRegex = regex.Execute(inputStr)(0).Value
Else
ExtractUsingRegex = "No match"
End If
End Function
This function takes an input string and a regex pattern to extract the desired substring.
Step 3: Use the Function in Excel
- In your worksheet, use the function like this:
=ExtractUsingRegex(A2, "\d{3}-\d{2}-\d{4}")
This example extracts a Social Security number format (XXX-XX-XXXX) from the string in cell A2.
Method 2: Using Power Query
Power Query, a tool built into Excel, also supports Regex-like functionalities. Here’s how you can use it for substring extraction.
Step 1: Load Data into Power Query
- Select the data range or table.
- Go to Data > From Table/Range to load your data into Power Query.
Step 2: Add a Custom Column with Regex
- In Power Query, click on Add Column > Custom Column.
- In the formula bar, you can use functions like
Text.Select,Text.Start, orText.Middleto simulate Regex-like behavior. - For example, to extract numbers from a string:
=Text.Select([Column1], {"0".."9"})
This extracts all numeric characters from a text string.
Step 3: Apply and Load
Once the extraction is complete, click on Close & Load to bring the processed data back into Excel.
Method 3: Using Third-Party Add-ins for Regex in Excel
If you’re looking for an easier, no-code solution, several third-party add-ins allow direct Regex usage in Excel without the need for VBA or Power Query. Some popular ones include:
- Regex Tool for Excel: A simple add-in that provides regex functionality directly within Excel formulas.
- Kutools for Excel: A comprehensive toolkit that includes Regex among its many features.
These tools offer a more user-friendly interface and save you time if you frequently work with Regex.
Common Regex Patterns for Substring Extraction
Here are a few common Regex patterns you can use for extracting substrings:
- Extract Email Addresses:
regex
\b[A-Za-z0-9._%+-]+@[A-Za-z0-9.-]+\.[A-Z|a-z]{2,7}\b
This pattern extracts email addresses from a string.
- Extract Phone Numbers:
regex
\(\d{3}\) \d{3}-\d{4}
This pattern extracts phone numbers in the format (XXX) XXX-XXXX.
- Extract Dates (MM/DD/YYYY):
regex
\b\d{1,2}/\d{1,2}/\d{4}\b
Use this pattern to extract dates from text strings.
Best Practices for Using Regex in Excel
1. Test Patterns Regularly
When using complex Regex patterns, always test them on small datasets first to ensure they work correctly before applying them to large datasets.
2. Use Non-Greedy Matching
By default, Regex uses “greedy” matching, meaning it will try to match the longest possible string. To avoid this, use the “non-greedy” modifier (?) to match the shortest possible string.
3. Be Mindful of Performance
Regex can be resource-intensive, especially on large datasets. If you find that Excel is slowing down, consider using Power Query or external tools for better performance.
Conclusion
Though Excel doesn’t natively support Regex, there are various ways to integrate this powerful tool into your data analysis workflow. Whether using VBA, Power Query, or third-party add-ins, Regex provides unparalleled flexibility in extracting and manipulating text data. By mastering Regex, you’ll enhance your ability to analyze complex data and automate many tedious string manipulation tasks in Excel.
