Installing Exchange Server 2019: A Detailed Installation Manual

Installing Exchange Server 2019: A Detailed Installation Manual

Microsoft Exchange Server 2019 is a powerful on-premises email and collaboration platform designed for businesses of all sizes. This comprehensive guide will walk you through the installation and configuration process, ensuring a seamless setup and optimal functionality.

Prerequisites for a Successful Installation

Before diving into the installation, ensure you meet the following prerequisites:

  • Supported Operating System:Windows Server 2019 Standard or Datacenter edition.

Set Up

  • Hardware Requirements:

    • CPU: Minimum 2 cores with 2.2 GHz or faster.
    • RAM: Minimum 8 GB for small deployments, 16 GB or more for larger environments.
    • Disk Space: Minimum 30 GB free space on the system drive, additional space for mailbox databases.

  • Active Directory:A functional Active Directory domain with Schema extensions prepared for Exchange 2019.

Set Up

  • .NET Framework 4.8:Ensure it’s installed on the server.

Set Up

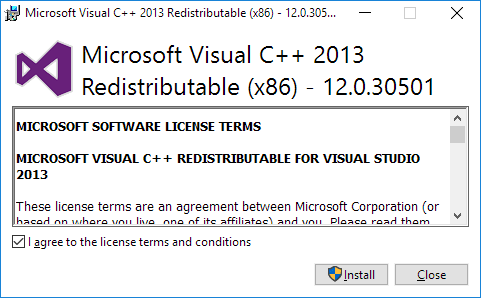

  • Visual C++ Redistributable Packages for Visual Studio 2013:Install these packages.

Set Up

Step-by-Step Installation Process

  1. Download Exchange Server 2019:

    • Obtain the Exchange Server 2019 installation ISO file from the Microsoft Volume Licensing Service Center (VLSC) or your preferred source.

      Set Up

  2. Prepare Active Directory:

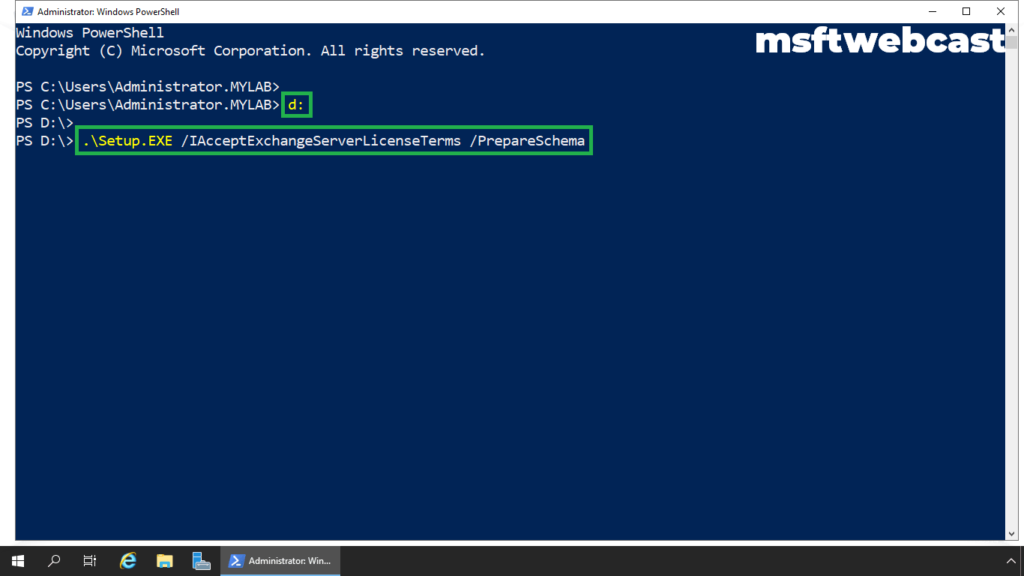

    • Open an elevated PowerShell window and run the following commands:
PowerShell
Setup.exe /PrepareSchema
Setup.exe /PrepareAD
Setup.exe /PrepareDomain
Set Up
  1. Install Exchange Server:

    • Mount the ISO file or extract its contents.

    • Run Setup.exe as an administrator.

    • Accept the license agreement.

    • Choose the installation type (typically “Mailbox role” for the first server).

Set Up

    • Select the installation location.

    • Configure the malware protection settings.

    • Start the installation.

Set Up

    • The setup wizard will perform readiness checks and install the necessary components.

    • Reboot the server if prompted.

Post-Installation Configuration

  1. Access the Exchange Admin Center (EAC):

    • Open a web browser and navigate to https://localhost/ecp.
    • Log in with your Exchange administrator credentials.

      Set Up

  2. Essential Configuration Tasks:

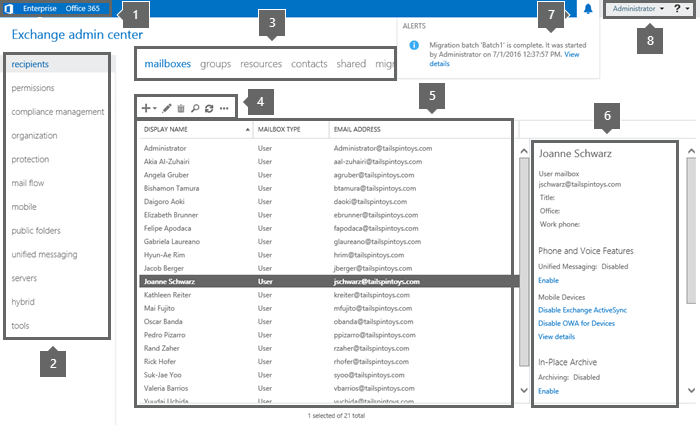

    • Create Mailboxes: Add new mailboxes for your users in the “recipients” -> “mailboxes” section.

    • Configure Send/Receive Connectors: Set up connectors to manage email flow to and from your Exchange server.

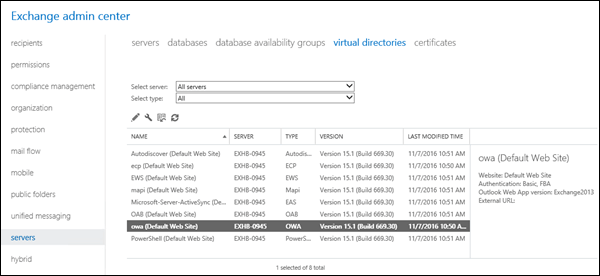

    • Configure Virtual Directories:Manage access to various Exchange services (OWA, EWS, etc.) through virtual directories.

      Set Up

    • Apply Security Settings: Implement security measures like anti-spam, anti-malware, and data loss prevention (DLP).

Additional Considerations for Optimal Performance

  • Client Access: Set up Outlook on the web (OWA) or Outlook clients for users to seamlessly access their mailboxes.
  • Certificates: Install a valid SSL certificate to secure communications with your Exchange server.
  • Backups: Regularly back up your Exchange server data to prevent data loss and ensure business continuity.

Troubleshooting Tips

  • Event Viewer: Monitor the Windows Event Viewer for any errors or warnings related to Exchange.
  • Exchange Management Shell: Utilize PowerShell cmdlets for advanced troubleshooting and configuration tasks.
  • Microsoft Support: Refer to Microsoft’s official documentation and support resources for comprehensive assistance.

By following this comprehensive guide, you’ll be well on your way to setting up a robust Exchange Server 2019 environment that meets your organization’s communication and collaboration needs.

Let me know if you have any further questions!
